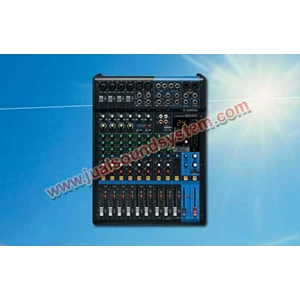

Detail MIXER YAMAHA MG-12XU ( USB)
MIXER YAMAHA MG12XU
( USB PORT 2.0 READY)
12-Channel Mixing Console
Max. 6 Mic / 12 Line Inputs ( 4 mono + 4 stereo)
2 GROUP Buses + 1 Stereo Bus
2 AUX ( incl. FX)
“ D-PRE” mic preamps with an inverted Darlington circuit
1-Knob compressors
High-grade effects: SPX with 24 programs
24-bit / 192kHz 2in / 2out USB Audio functions
Works with the iPad ( 2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
Includes Cubase Al DAW software download version
PAD switch on mono inputs
+ 48V phantom power
XLR balanced outputs
Internal universal power supply for world-wide use
Optional Rack Mount Kit RK-MG12 Available
Metal chassis
Spek :
Kerangka
Kapabilitas Mixing: Prosesor on-board SPX algorithm: 24 programs, PARAMETER control: 1,
FOOT SW: 1 ( FX RTN CH on/ off)
I/ O: Daya Phantom + 48 V
I/ O Digital USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit
Outline
Input Channels: Mono[ MIC/ LINE] 4, Mono/ Stereo[ MIC/ LINE] 2, Stereo[ LINE] 2
Output Channels: STEREO OUT 2, MONITOR OUT 1, PHONES 1, AUX SEND 2, GROUP OUT 2
Bus: Stereo: 1, GROUP: 2, AUX: 2 ( incl. FX)
Input Channel Function:
PAD 26 dB ( Mono) , HPF 80 Hz, 12 dB/ oct ( Mono/ Stereo: MIC only) ,
COMP 1-knob compressor ( Gain/ Threshold/ Ratio) Threshold: + 22 dBu to -8 dBu, Ratio: 1: 1 to 4: 1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec,
EQ HIGH Gain: + 15 dB/ -15 dB, Frequency: 10 kHz shelving,
EQ MID Gain: + 15 dB/ -15 dB, Frequency: 2.5 kHz peaking,
EQ LOW Gain: + 15 dB/ -15 dB, Frequency: 100 Hz shelving,
PEAK LED: LED turns on when post EQ signal reaches 3 dB below clipping
Level Meter 2x12 -segment LED meter [ PEAK, + 10, + 6, + 3, 0, -3, -6, -10, -15, -20, -25, -30 dB]
Spesifikasi Umum
Total Distorsi Harmoni 0.03 % @ + 14dBu ( 20 Hz to 20kHz) , GAIN knob: Min, 0.005 % @ + 24dBu ( 1kHz) , GAIN knob: Min
Respon Frekuensi + 0.5 dB/ -1.5 dB ( 20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
Hum & Tingkat Kebisingan: Penyetaraan Masukan Kebisikan -128 dBu ( Mono Input Channel, Rs: 150© , GAIN knob: Max)
Sisa Kebisingan Keluar -102 dBu ( STEREO OUT, STEREO master fader: Min)
Crosstalk -78 dB
Persyaratan Daya AC 100 – 240 V, 50 / 60 Hz
Penggunaan Daya 22 W
Dimensi W 308 mm ( 12.1" ) x H 118 mm ( 4.6" ) x D 422 mm ( 16.6" )
Berat Bersih 4.2 kg ( 9.3 lbs.)
Aksesori Included Accessory: Owner’ s Manual, Technical Specifications, AC power cord, Cubase AI Download Information, Optional Accessory: Rack-mount kit RK-MG12, Foot Switch FC5
General specifications
Others Operating Temperature: 0 to + 40Ú C
